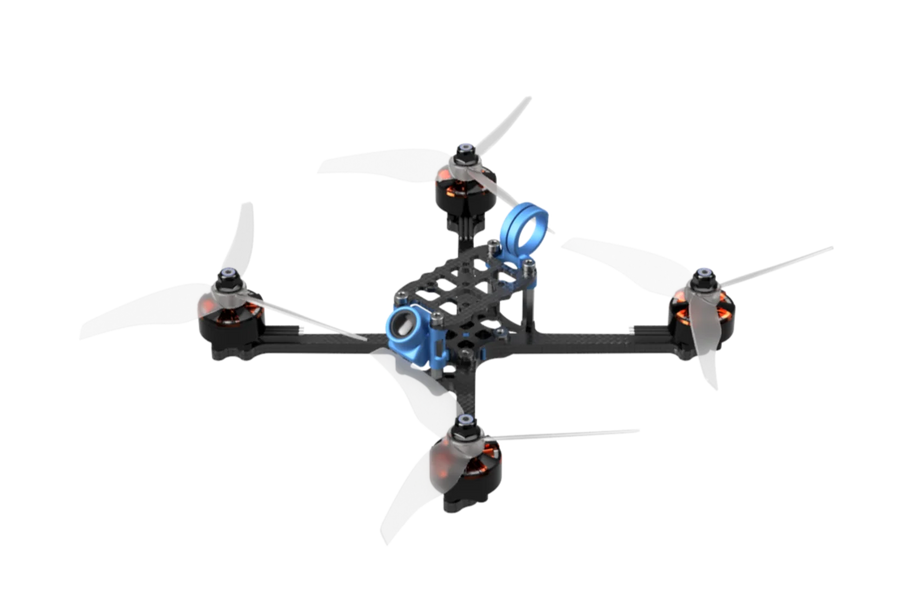

DinDrones OZR-5X - 5" racing raam

The DinDrones OZR-5X is an ultra-lightweight 5-inch racing frame designed for speed, precision, and low-noise performance. Weighing just 44.37 g, it is engineered to deliver an efficient and responsive flight experience for competitive FPV pilots.

Developed by a Red Bull Air Race team engineer, the OZR-5X features a true-X arm layout, a unique Torque Box arm design, and a central TPU damper that helps reduce frame vibration and unwanted movement. Its 46.5 mm standoff spacing also provides additional room for larger electronic speed controllers.

The frame includes a minimal mid-plate design with separate front and rear areas for flexible receiver placement. Additional protection can be added using optional side, front, and rear braces or a customizable pod.

Key Features

• Ultra-lightweight 44.37 g racing frame
• True-X arm layout
• 5-inch frame configuration
• Unique Torque Box arm design
• Central TPU damper for reduced frame noise and movement
• 46.5 mm standoff spacing for larger ESCs
• 2 mm T700 carbon-fiber top, middle, and bottom plates
• 5 or 6 mm T700 carbon-fiber arms
• Available in multiple frame configurations
• OZR-5X Betaflight preset available
• Military-grade steel and aluminum hardware included
