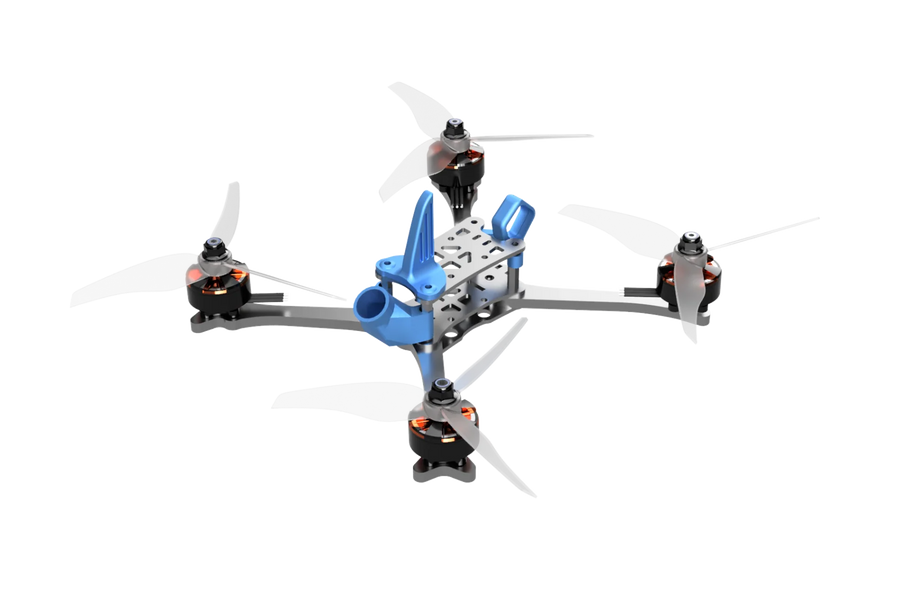

DinDrones Typhon - 5" racing raam

The DinDrones Typhon is a lightweight and highly durable racing frame designed for fast, precise FPV performance. Developed from an open-source project by SouthEastFPV, the Typhon has been refined through competitive racing and achieved the top qualifying time at the 2021 MultiGP Global Championship.

Built from high-strength T700 carbon fiber, the frame offers an excellent balance of low weight, stiffness, and durability. It is available with 5 mm or 6 mm arms, allowing pilots to choose between maximum lightweight performance or increased crash resistance.

Key Features

• 5-inch FPV racing frame
• T700 carbon-fiber construction
• 5 mm or 6 mm arm options
• Regular or Long body configuration
• Approximate weight:
  • 52 g with 5 mm arms
  • 64 g with 6 mm arms
• 20 × 20 mm mounting pattern
• Compatible with 5-inch and 6-inch configurations
• Long body option supports larger ESCs, including T-Motor 60A, Foxeer Reaper Slim, and Rush
• Designed for speed, durability, and precise handling
• Optional TPU camera pods, antenna mounts, and turtle fins available
