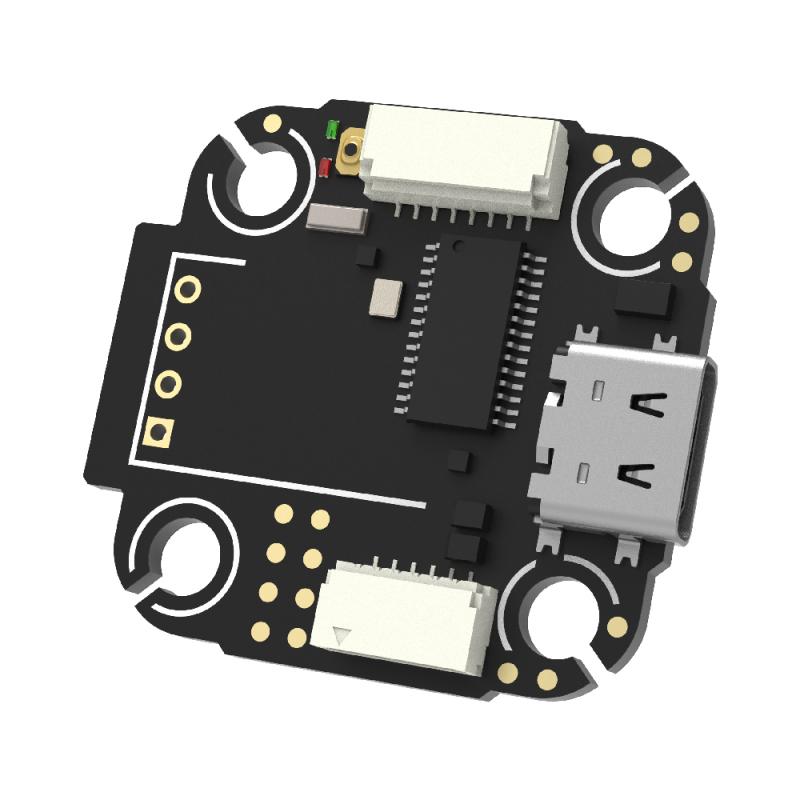

The TBS Lucid FC Freestyle is a compact 20×20 mm flight controller designed for modern FPV freestyle and racing builds. Powered by the AT32F435RMT7 processor and equipped with an ICM-42688P gyro, it delivers responsive flight performance, reliable processing, and smooth Betaflight operation.
With six UARTs, 8MB of onboard Blackbox flash, built-in current sensing, and plug-and-play connectors for 4-in-1 ESCs and the DJI O3 Air Unit, the Lucid FC offers a clean and convenient installation for a wide range of FPV configurations. It is compatible with both TBS Crossfire and TBS Tracer systems, as well as other radio receivers.
Key Features
- 20×20 mm mounting pattern
- AT32F435RMT7 MCU running at 288 MHz
- ICM-42688P gyro
- Six UARTs
- 8MB Blackbox flash memory
- Plug-and-play ESC and DJI O3 connectors
- Built-in motor telemetry and current sensor
- 9V 2.5A and 5V 2A BEC outputs
- Compatible with 3S–6S LiPo batteries
- Suitable for freestyle and racing builds
