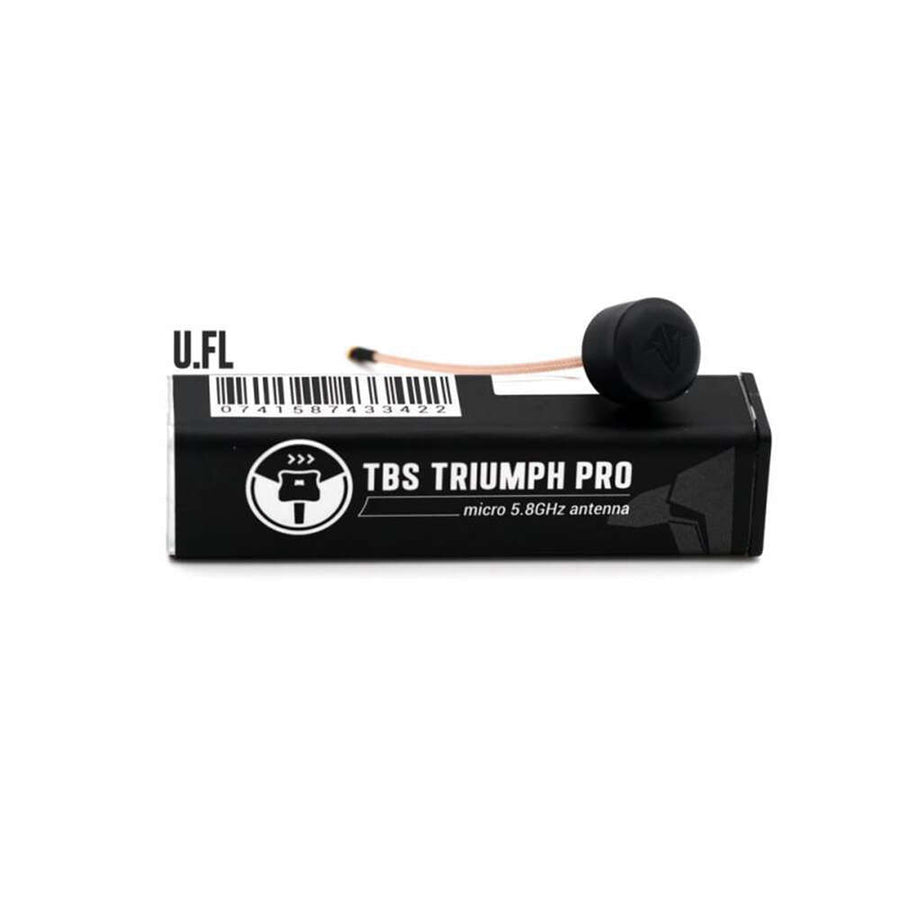

The TBS Triumph Pro is a compact, high-performance circularly polarized 5.8 GHz FPV antenna designed for excellent range, signal clarity, and durability. Developed by IBCrazy, it provides strong rejection of reflected signals and maintains consistent performance in demanding flight conditions.
Its lightweight microstrip design features a rigid, ultrasonic-welded protective enclosure and a reinforced semi-rigid cable, allowing reliable installation in exposed areas while helping protect the antenna from crashes.
Key Features
- 5.8 GHz RHCP circular polarization
- Excellent range and signal quality
- Compact and lightweight design
- Ultrasonic-welded, foam-filled protective cover
- Reinforced RG405/U semi-rigid cable
- Ideal for FPV drones and video transmitters
Specifications
-
Frequency range: 5500–6000 MHz
-
Polarization: RHCP
-
Gain: 1.6 dBic
-
Axial ratio: 0.99
-
Cable: RG405/U
-
Weight: 2–3 g
-
Height: 100 mm
-
Connector: U.FL / SMA / MMCX
